Kwiktech Official Load Ratings Released

Kwiktech Official Load Ratings Released

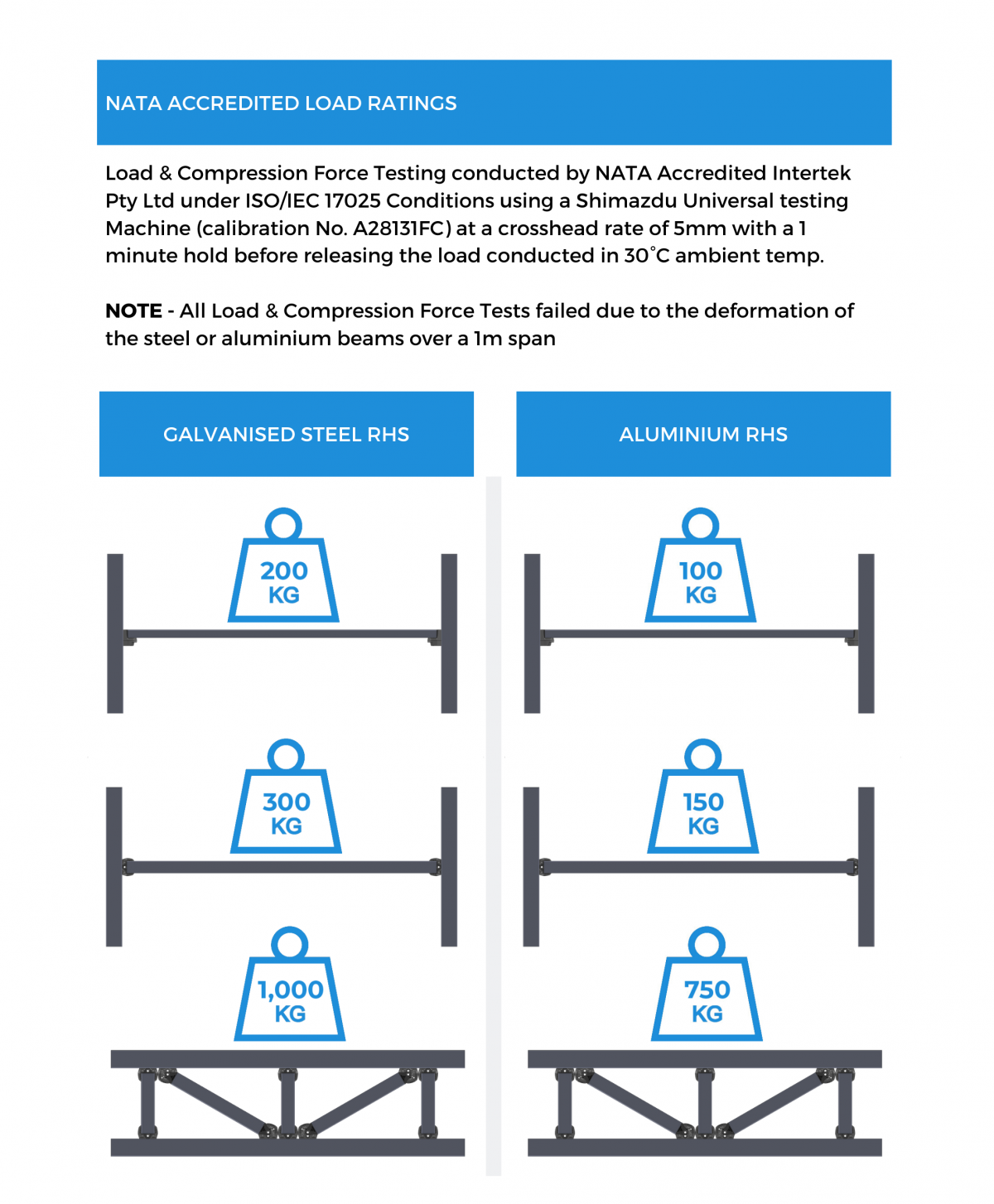

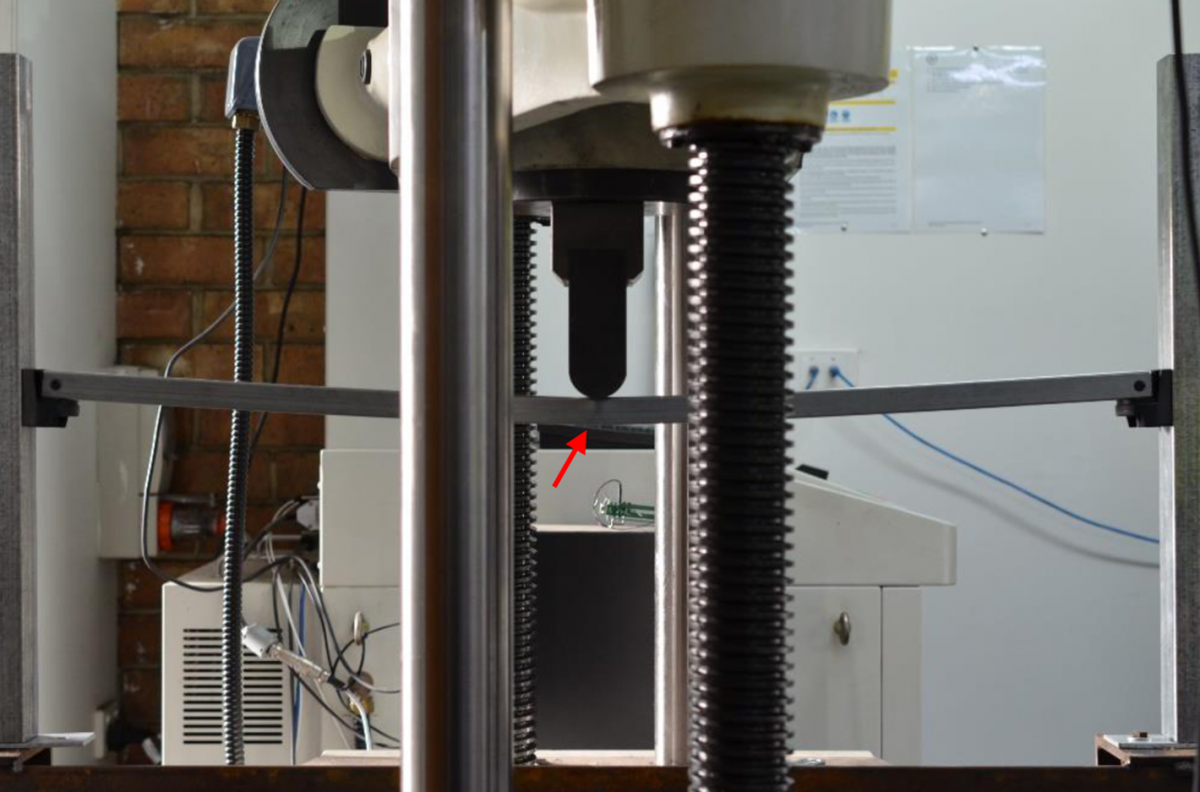

Load Test 1 – Force on 38mm Side – 1m Span

38mm x 25mm x 1.2mm Galv. Steel Rail connected with Kwiktech to 50mm x 50mm x 1.6mm Galv. Steel Rail.

Deformation of Steel Beam at 2400 Newtons.

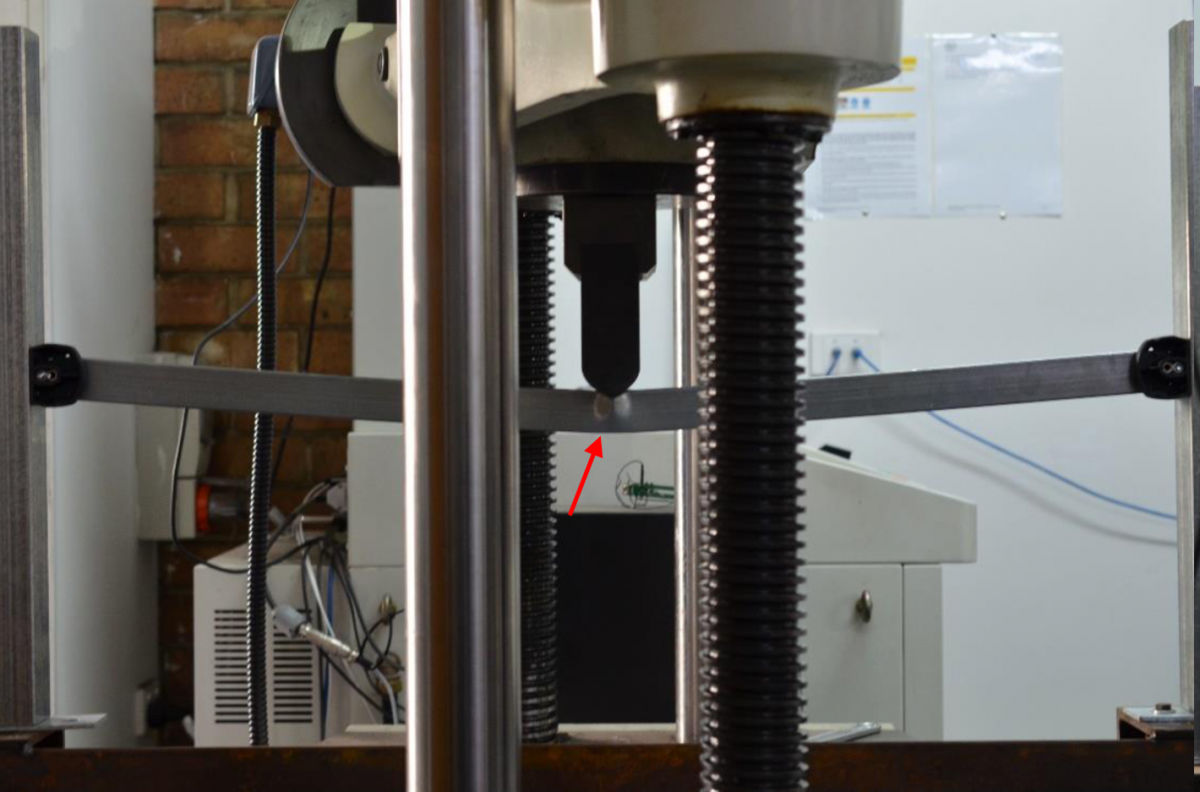

Load Test 2 – Force on 25mm Side – 1m Span

38mm x 25mm x 1.2mm Galv. Steel Rail connected with Kwiktech to 50mm x 50mm x 1.6mm Galv. Steel Rail.

Deformation of Steel Beam at 3300 Newtons.

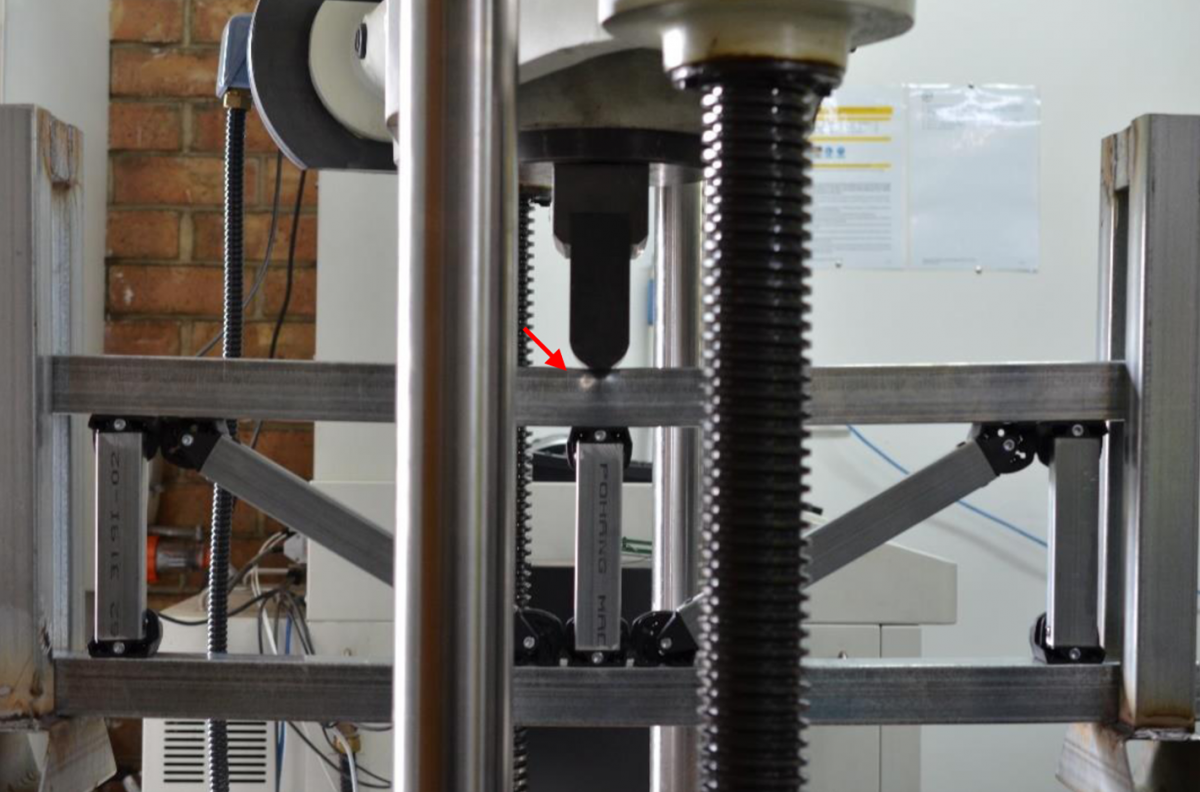

Load Test 3 – Truss Section Over 1m (5 Braces)

50mm x 50mm x 1.6mm Galv. Steel Rail connected with Kwiktech to 38mm x 25mm x 1.2mm Galv. Steel Braces.

Deformation of Steel Beam at 15000 Newtons.

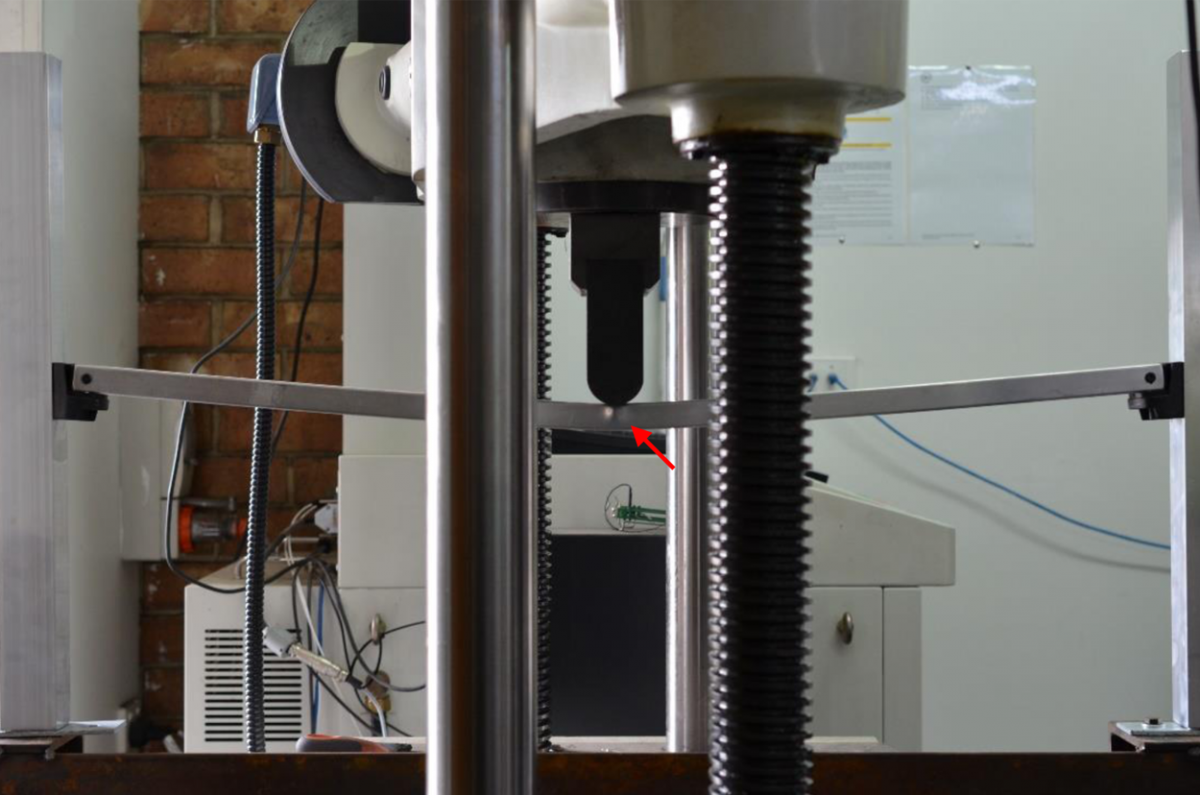

Load Test 4 – Force on 38mm Side – 1m Span

38mm x 25mm x 1.5mm Gr.6106 T6 Aluminium Rail connected with Kwiktech to 50mm x 50mm x 1.6mm Gr.6060 T5 Aluminium Rail

Deformation of Aluminium Beam at 1400 Newtons.

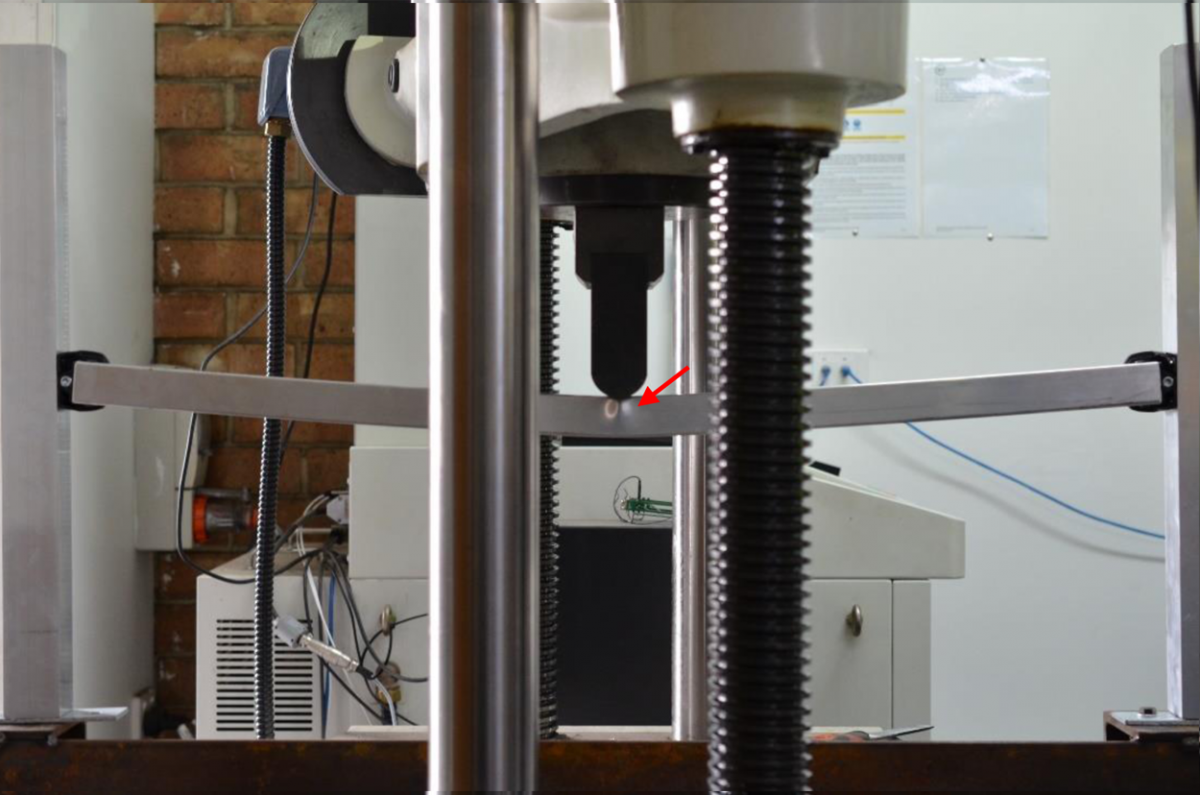

Load Test 5 – Force on 25mm Side – 1m Span

38mm x 25mm x 1.5mm Gr.6106 T6 Aluminium Rail connected with Kwiktech to 50mm x 50mm x 1.6mm Gr.6060 T5 Aluminium Rail

Deformation of Aluminium Beam at 1850 Newtons.

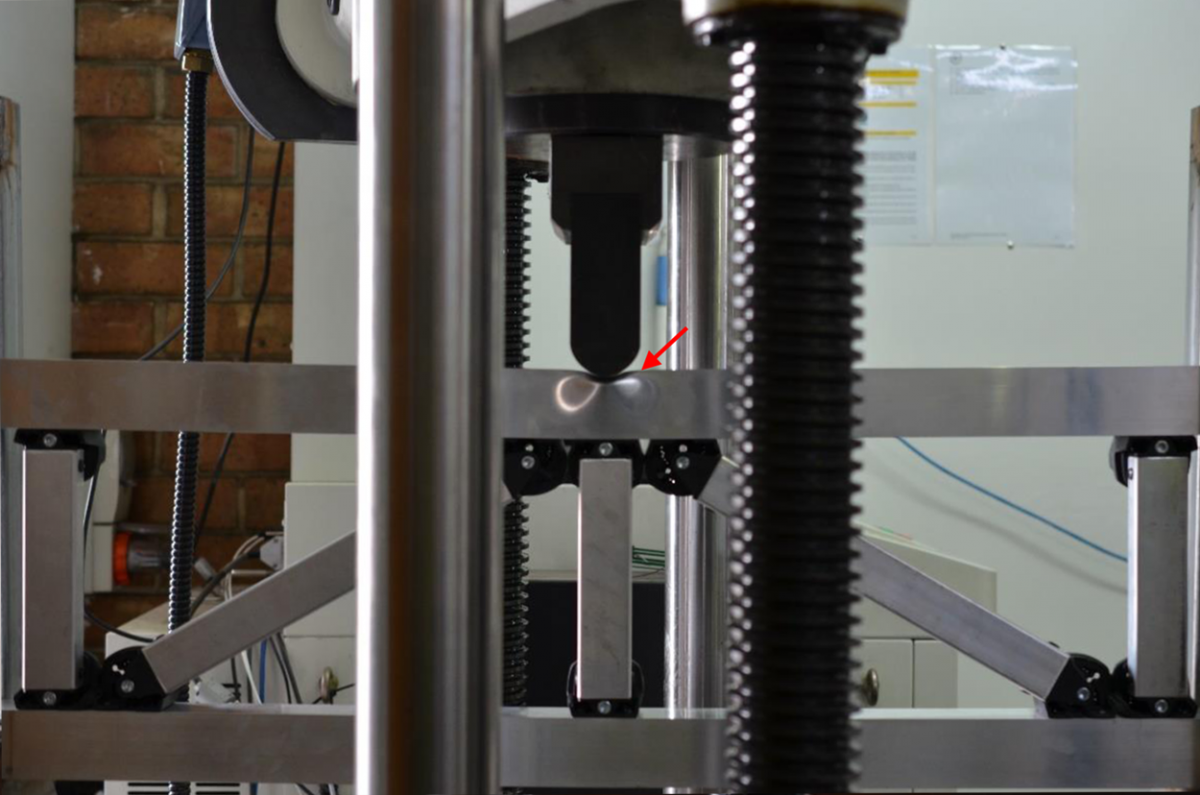

Load Test 6 – Truss Section Over 1m (5 Braces)

50mm x 50mm x 1.6mm Gr.6060 T5 Aluminium Rail connected with Kwiktech to 38mm x 25mm x 1.5mm Gr. 6106 T6 Aluminium Braces

Deformation of Aluminium Beam at 8600 Newtons.
